Tripath Class-T Amplifier
Feb 13, 2010 at 01:04 PM
Article Index
Tripath Class-T Amplifier
Status Quo
What\'s Wrong
Lets replace that stuff

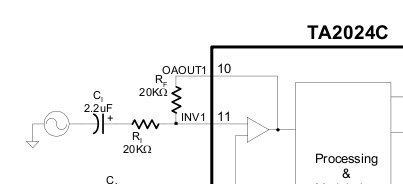

The TA2024C datasheet provides a sample application schematic which has a 2.2µF coupling condensator for each input:

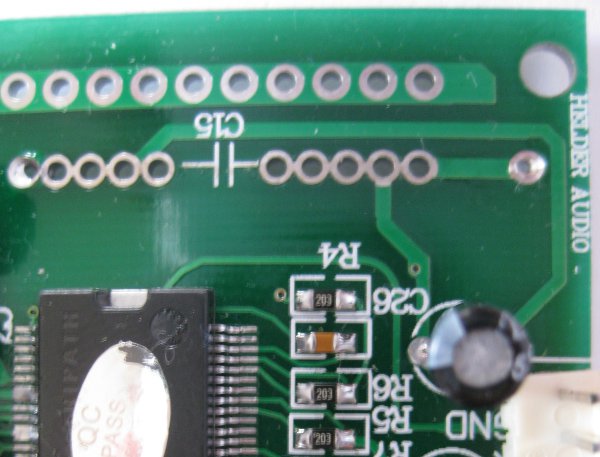

But the chineese "Kondensotor" aims to be 1µF. Removing it from the board gives some light:


The overall capacity is obtained by another 1µF electrolyt capacitor in parallel Cry
