Mission Cyrus Pre - A DIY Digital Volume Control |
|
May 27, 2010 at 02:11 PM |
|
Page 3 of 6
Some research in the www immediately pointed me to the project done by Jos van Eijndhoven: The "RelaiXed", a balanced pre-amplifier with a relay based volume control. Six relays allow discrete attenuation levels which are combinations of 1, 2, 4, 8 and 16dB.

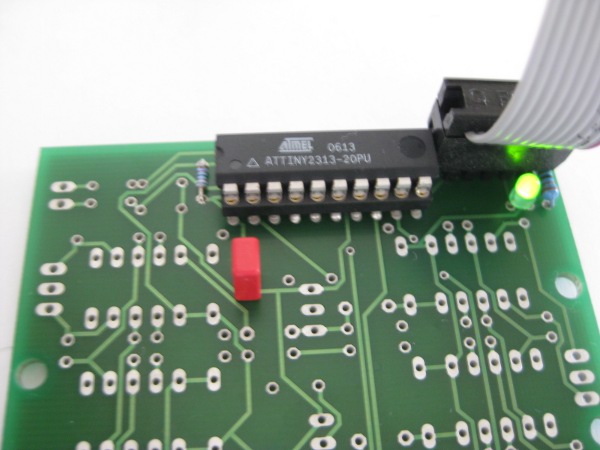

The PCB (my first double sided design ever) with the Atmel ATtiny2313:
|
|
