Refurbishing a Thorens TD-146 |
|
Apr 14, 2012 at 03:41 PM |
|
Page 2 of 5

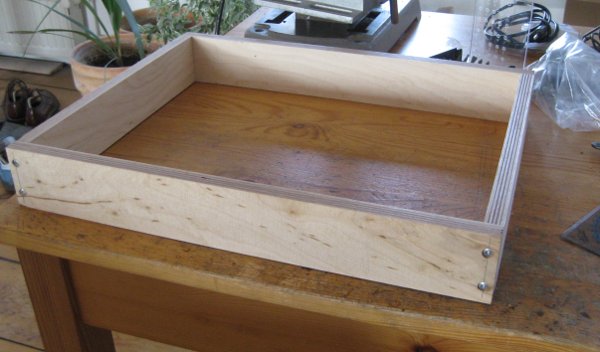

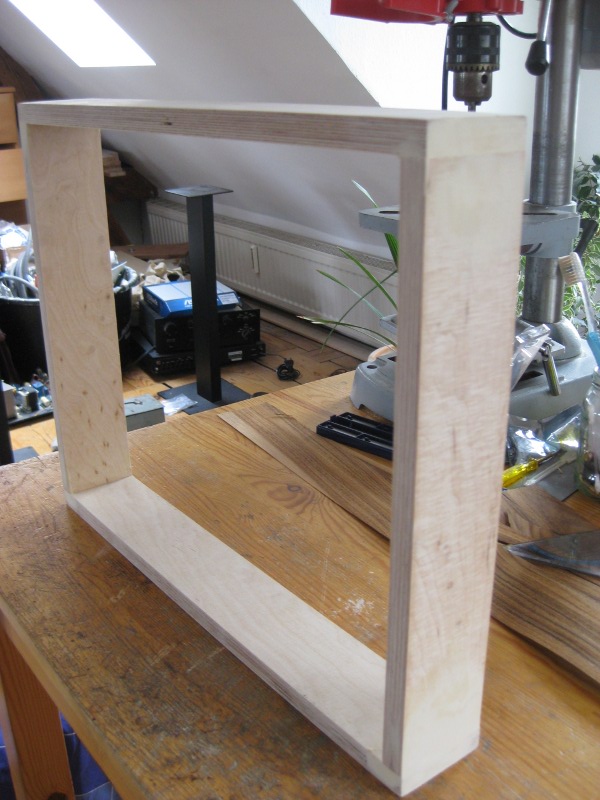

The frame is constructed by 15mm birch tree multiplex.
Required amount and dimensions of the cut are:
- Two times 429mm x 60mm
- Two times 310mm x 60mm

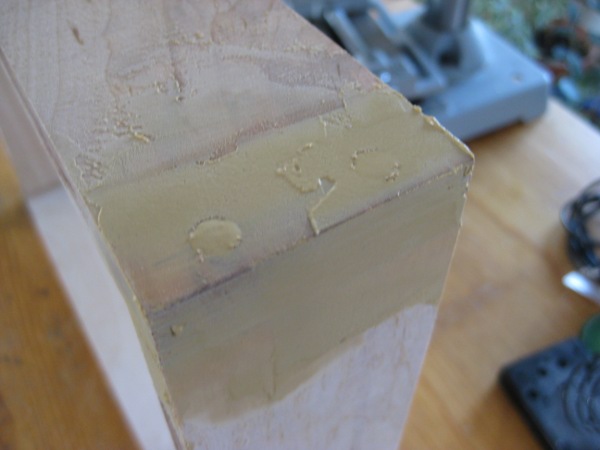

The edges are aligned with compound:
After one day drying and grinding:

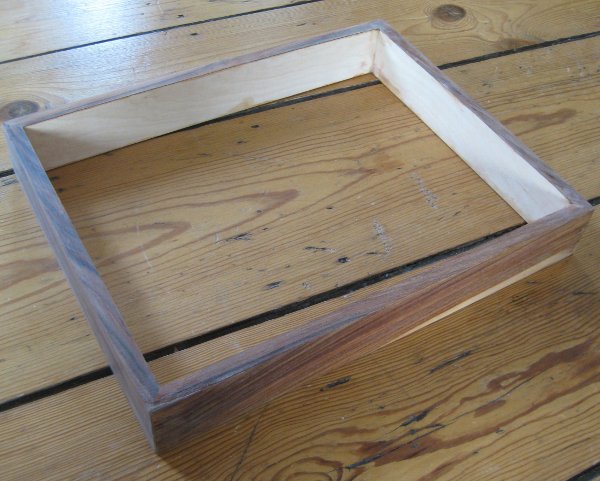

I have choosen my spare pieces of rosewood to veneer the frame

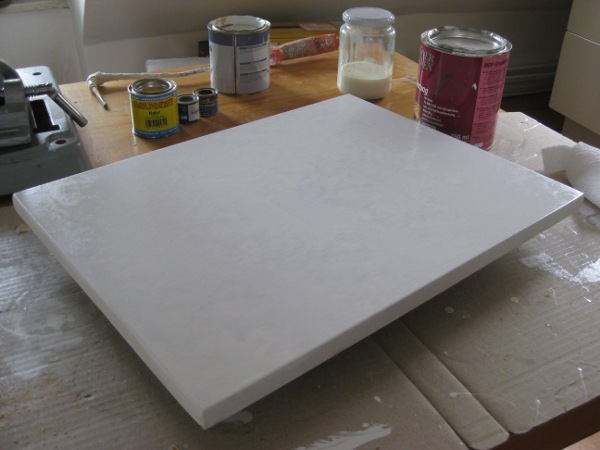

The base plate is one solid piece of 16mm thick MDF, here already after the first priming:
|
|
