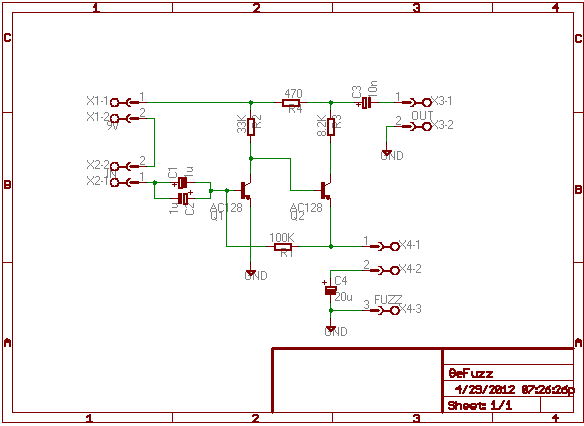

The schematic is the classic version without modifications:
Thera are two bugs in the schematic:
- C4 polarity needs to be inverted
- X1-2,X2-2 require a connection to ground

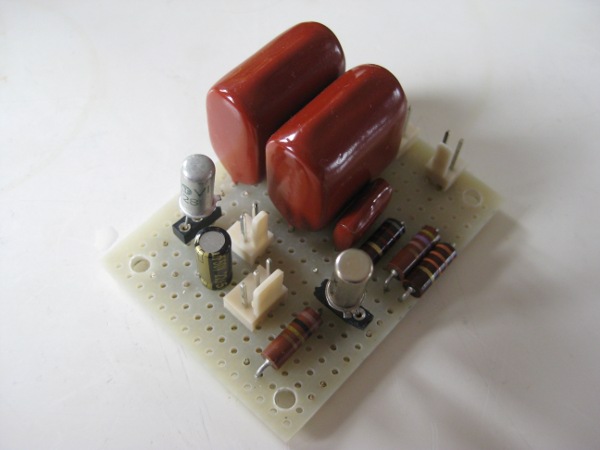

The small PCB with adequate components:
|
|
