A Fender Stratocaster Project |
|
Nov 18, 2012 at 09:29 PM |
|
Page 3 of 3

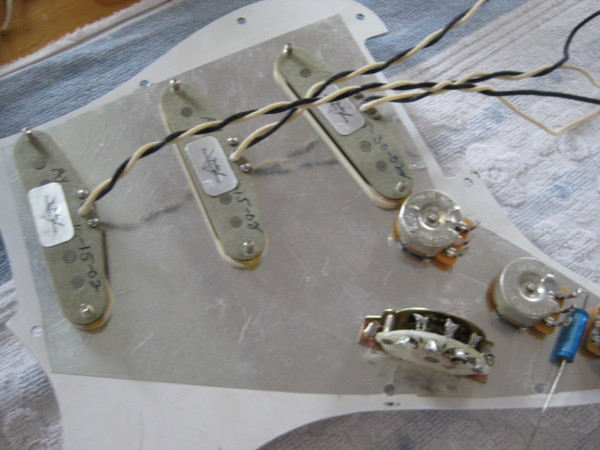

The original pick-guard is to re-assembled from scratch. Components are:
- Fender Custom 69s
- CLR 5-Way Switch
- Three 250K pots
- Two ERO MKP1845 .01µF caps for tone control

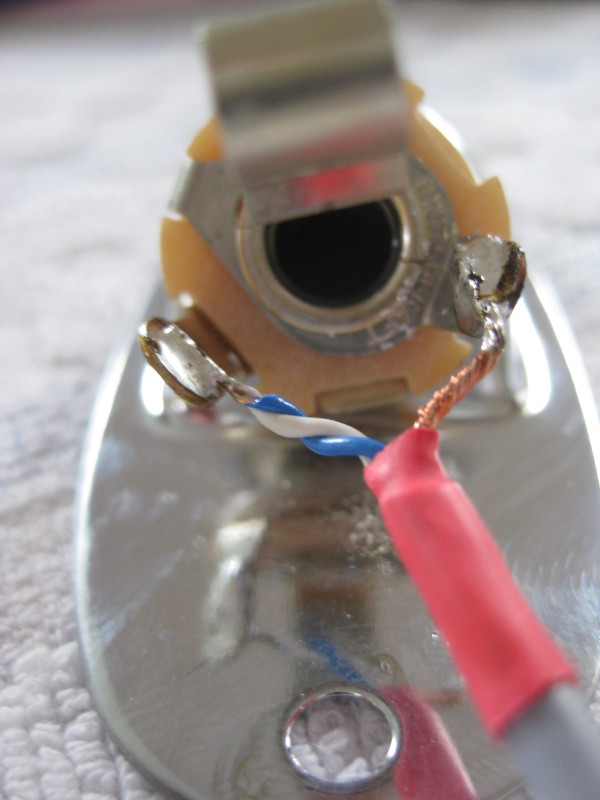

Although the shielding is available, it will be used in a passive way unless hum require more changes. The plug wiring is done with a shielded cable:

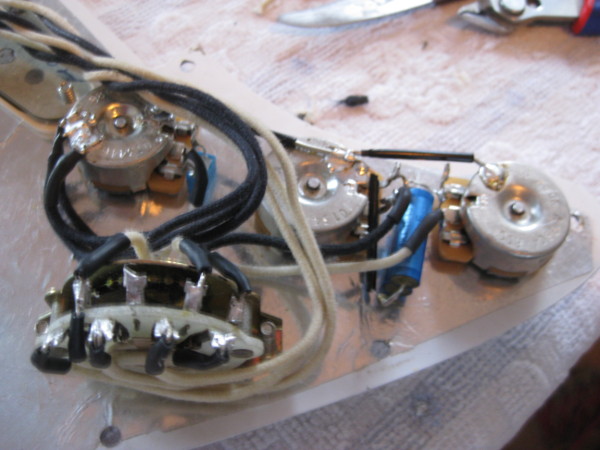

Wiring is done, A 220pF cap for Volume-Treble-Bleed.Compensation has been added:
|
|
Last Updated ( Nov 25, 2012 at 12:45 PM )
|
