Raphael Ortophonic Line
Dec 12, 2012 at 08:43 AM
Article Index
Raphael Ortophonic Line
New Transformator
Re-Assembly
First results

Most important fix is to get a suitable heater supply. A custom toroidial transformator with the following specs has been ordered:

  1. Overal rating 20VA
  2. Primary 230V
  3. First secondary: 250V/60mA
  4. Second secondary: 22V/200mA
  5. Potted and shielded

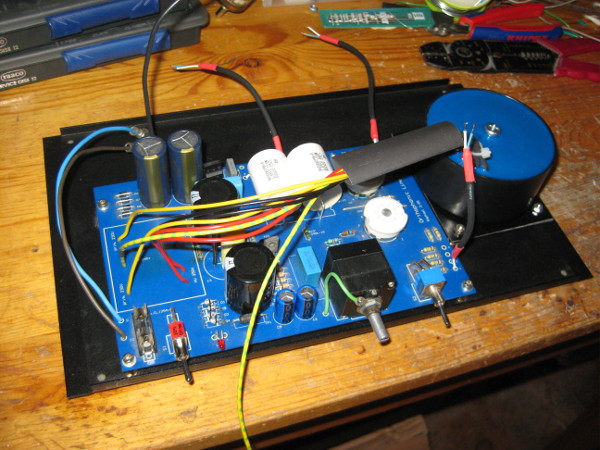

Just after one week it did arrive, let's continue:




Last Updated ( Dec 20, 2012 at 11:29 AM )
