Coming Back To Life: The QUAD ESL57 |
|
Jun 09, 2013 at 07:33 PM |
|
Page 2 of 9
When reading about the QUADs you often find the recommendation to exchange the diodes in the high-voltage section of the power supply.

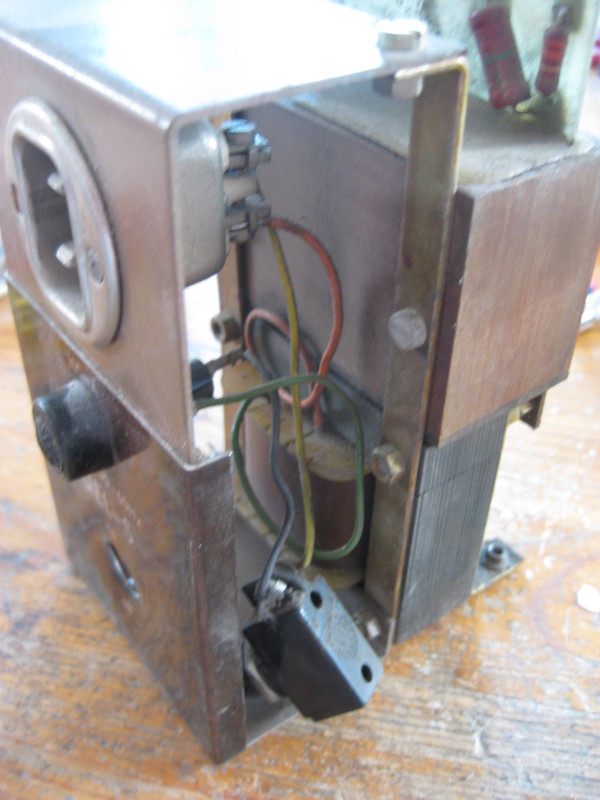

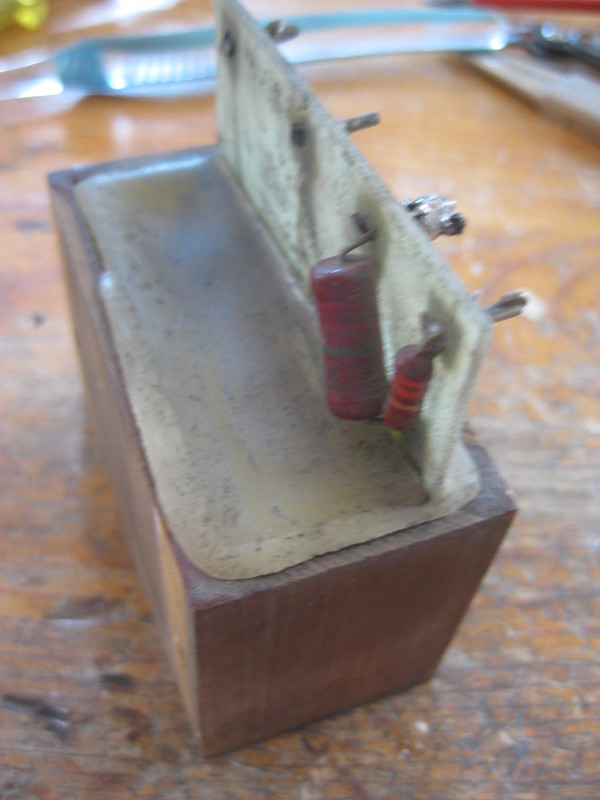

The mains power switch is broken at one, so it is time to disassemble it. The PCB is encapsulated by wax:

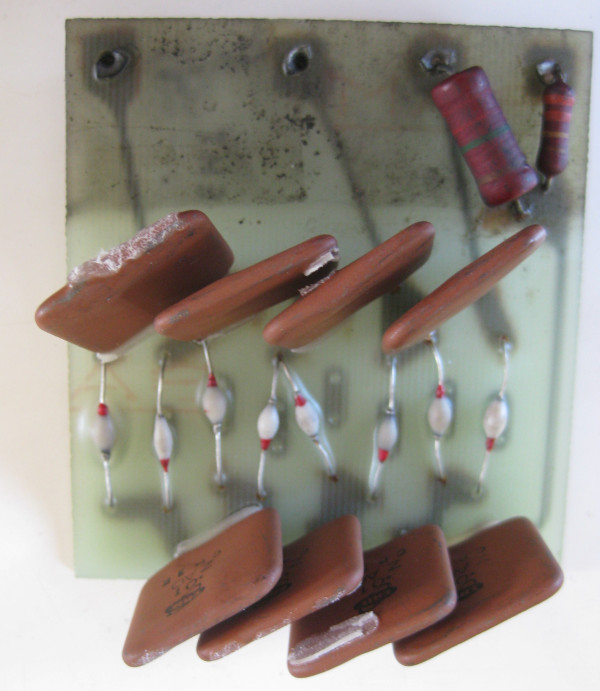

It requires approximately half in hour at 150°C to free the PCB

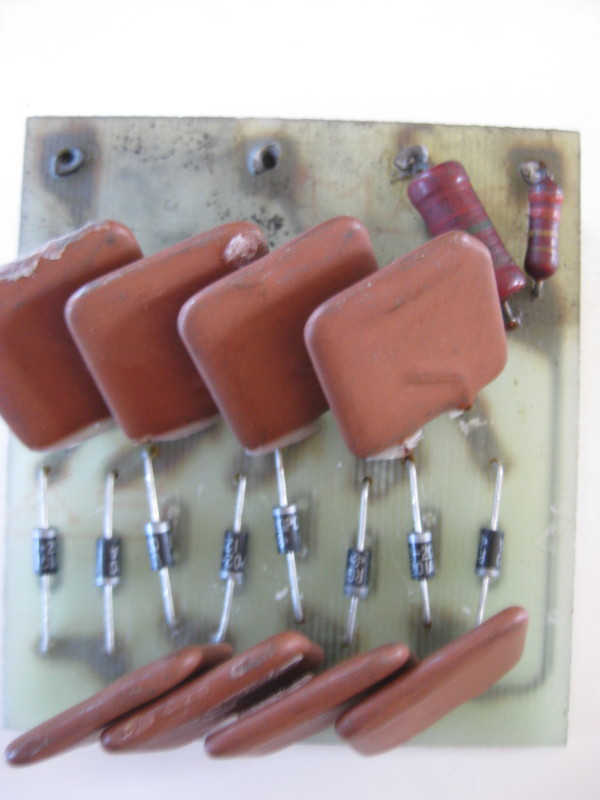

All diodes got replaced by 2KV ones:

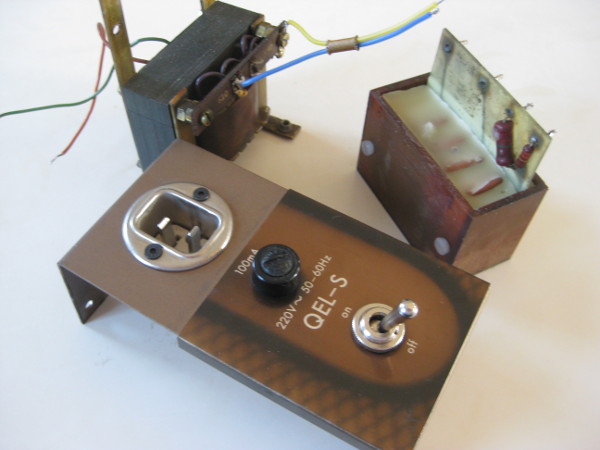

All parts are cleaned, the power switch is replaced by a robust metal version:

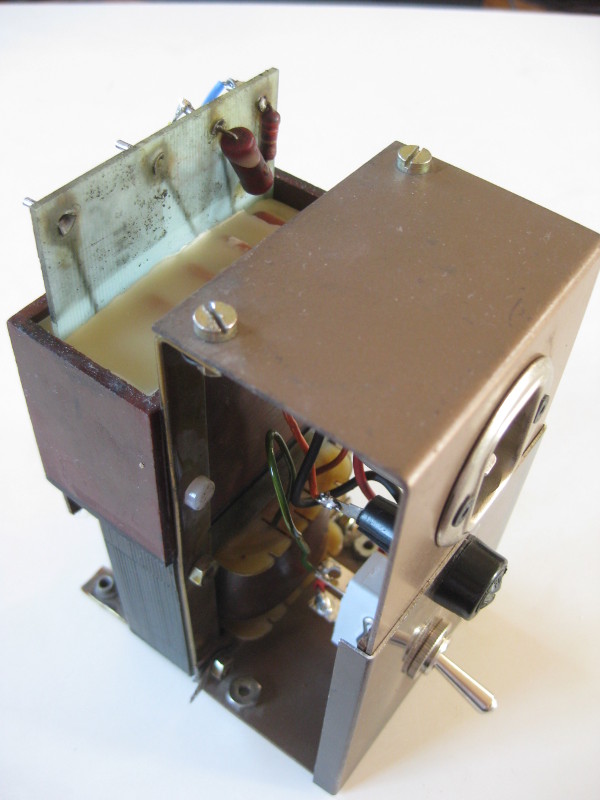

The result looks promising:
|
|
Last Updated ( Feb 02, 2016 at 11:21 PM )
|
