Coming Back To Life: The QUAD ESL57
Jun 09, 2013 at 07:33 PM
Article Index
Coming Back To Life: The QUAD ESL57
The High-Voltage Power Supply
Input Transformer Mods
The Back Grill
Some Woodwork
Assembly
Done!
Input Sensivity
A New HV Power Supply

After some hours of warm-up it is observed that the input sensitivity of both ESLs differs. Since there is no noise or hum produced by the speakers, let's hope that this is just caused by the HV power supply ...

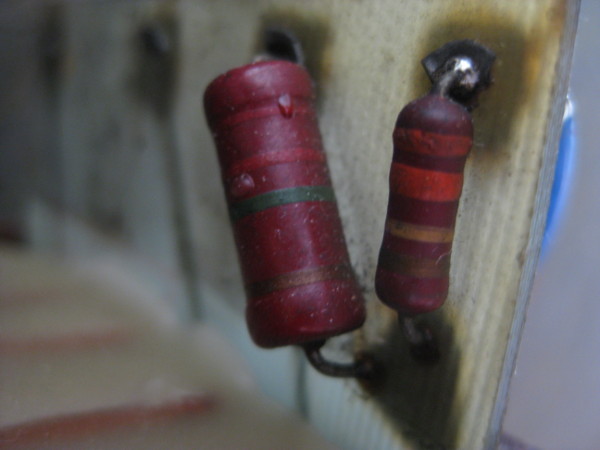

All diodes which form the cascade have been exchanged already, the next suspects are the carbon resistors:

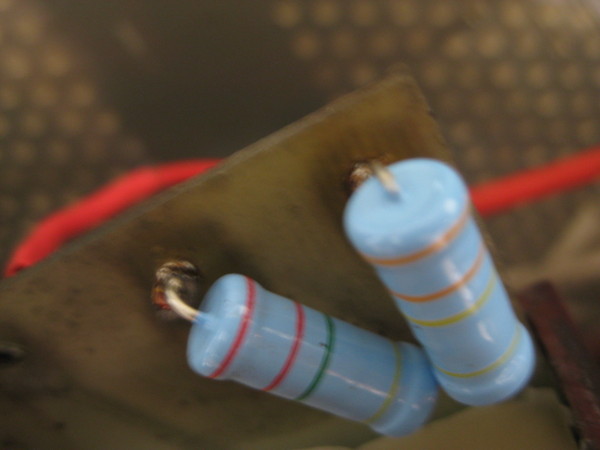

After replacing them with Vishay high voltage ones




Last Updated ( Feb 02, 2016 at 11:21 PM )
