Reel To Reel
Nov 27, 2014 at 09:43 PM
Article Index
Reel To Reel
First (minor) Problem: The Counter struggles

After some days of use: The counter struggles incrementing when a carry shall happen:
009 -> 010 doesn't work properly anymore. Instead some clicking noise is noticed.

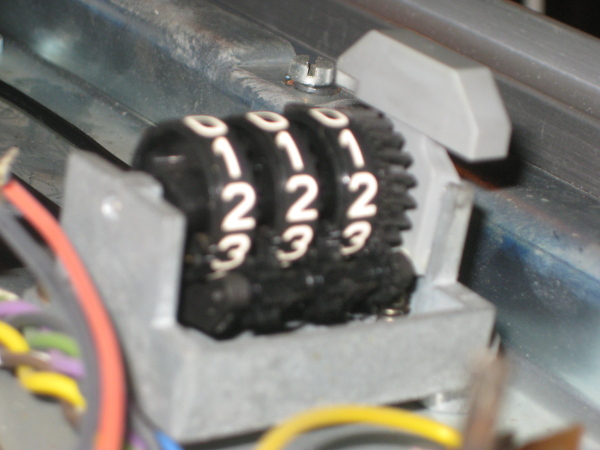

To check, the front panel has to be removed and the suspect is visible:


The attached belt seems to be ok - after unplugging the belt the issue can be reproduced by turning the counter wheel.

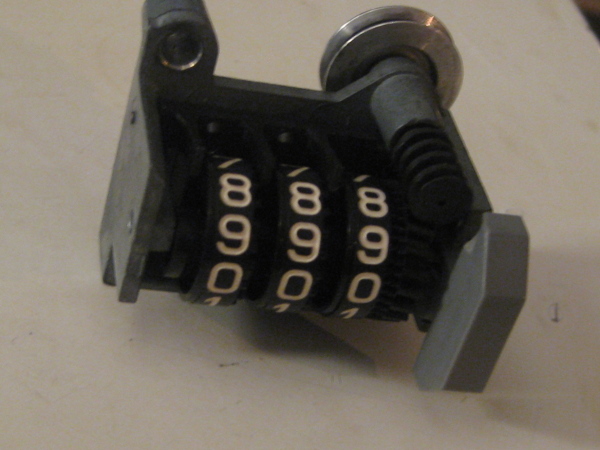

To stop the annoying counter-clicks, the counter has to be removed until a replacement is available.

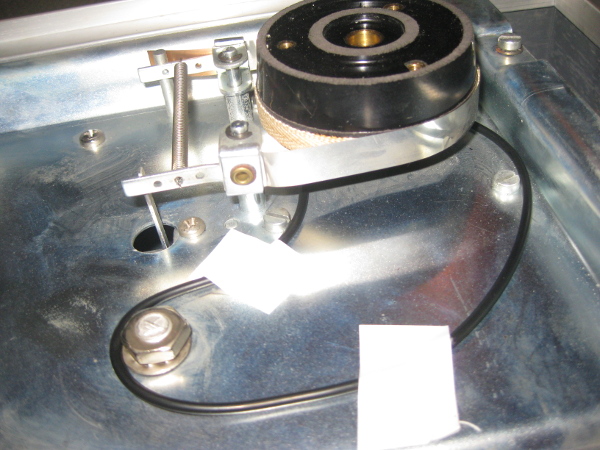

Since removing the belt would require some more disassembly I decided to fix it:

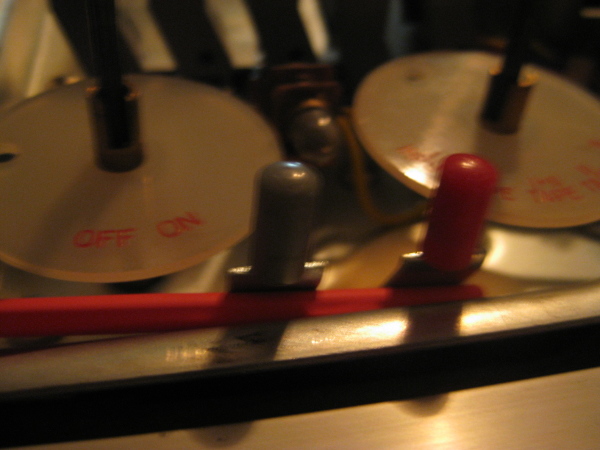

Re-assembling the front cover is a tricky part - the four knobs swing and turn below the cover.
They require some fixation before applying the front again:

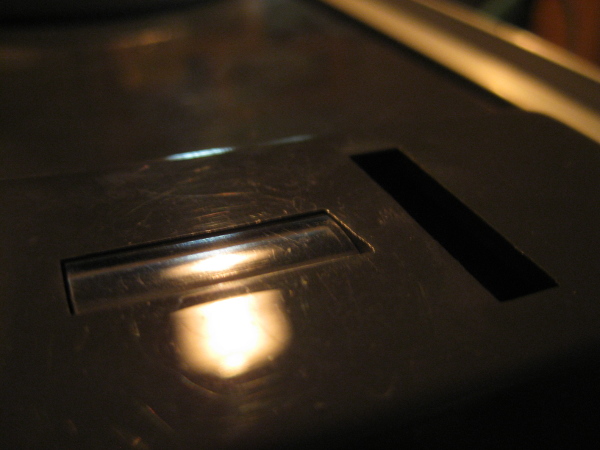

Counter is gone Cry


and needs furhter analysis




Last Updated ( Dec 18, 2014 at 04:59 PM )
